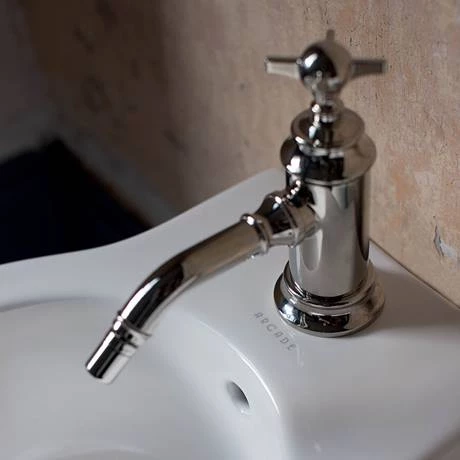

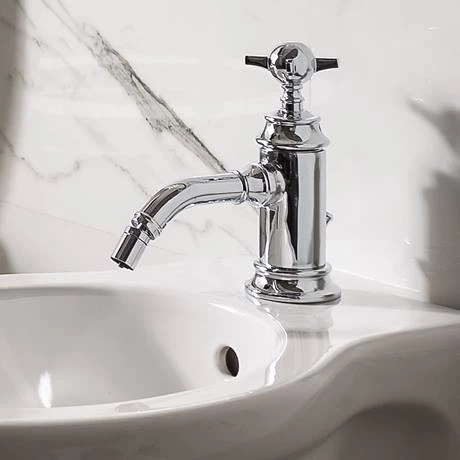

Arcade Bidet Mixer with Pop-up Waste – Nickel – Various Tap Head Options

The Bidet Mixer with Pop-up Waste from Arcade has a traditional design which has been inspired by the 19th century Belle Époque deco era. Each piece of brassware has been beautifully crafted from the finest materials and finished in a special PVD nickel coating which gives a superior finish and guarantees durability.

This tap is suitable for high and low pressure installations and is fitted with quarter turn ceramic disc headwork which provides a smooth movement. The minimum work pressure is 0.1 bar and the maximum work pressure is 5 bar. If the mains pressure is over 5 bar, a pressure reducing valve should be fitted. Supplied with an aerator and flow straightener for use with high or low water pressure. All Arcade products carry a 10 year guarantee.

Product details

• Finishes: Nickel plated
• Product Type: Traditional
• Material: Brass
• Water Pressure: Range from a minimum pressure of 0.1 bar to a maximum of 5 bar.
• Quarter turn ceramic disc valve
• Pop-up waste included

To control the temperature of the water you would do the following operation.

1. Tilt the tap handle backwards to turn the tap on.

2. You then control the temperature out of the tap by turning the handle either left (Hot) or to the right (Cold) until a suitable temperature has been attained.

Compliance / Approvals

BS 5412:1996
Specification for low-resistance single taps and combination tap assemblies (nominal size 1 and 3) suitable for operation at PN 10 max. and a minimum flow pressure of 0.01 MPa (0.1 bar)

BS EN 200:2008
Sanitary tapware. Single taps and combination taps for water supply systems of type 1 and type 2. General technical specification
Supplied with aerator – this is for use with high water pressure
Supplied with Flow straighter – this is for use with low water pressure

10 year guarantee

Flow Rates

System Pressure 0.2 bar 0.5 bar 1 bar 2 bar 3 bar
Spout (aerator) 1.52 2.42 3.42 4.82 5.88
Spout (straightener) 3.96 6.46 9.16 12.98 15.52
